Quartz Fiber Fabric

upload/ProdPic/202510270933146583.jpg

* Maintenance Free: The corrosion resistant properties remove the necessity of periodic painting or surface treatment.Exceptional Thermal Stability:This fabric maintains structural integrity during continuous exposure to temperatures approaching 1050℃.It exhibits very low thermal expansion and high resistance to thermal shock.The material softens only at temperatures significantly exceeding 1700℃.

* Effective Electrical Insulation:It possesses high dielectric strength and maintains low dielectric constant and loss tangent characteristics over a wide frequency spectrum,including RF and microwave ranges.These electrical properties remain largely stable under elevated temperatures.

* High Chemical Resistance&Low Thermal Conductivity:It functions as a thermal barrier while retaining dimensional stability at high operating temperatures.And the fabric demonstrates resistance to attack by many acids(excluding hydrofluoric acid and hot concentrated phosphoric acid),molten salts,and organic solvents,making it suitable for corrosive environments.

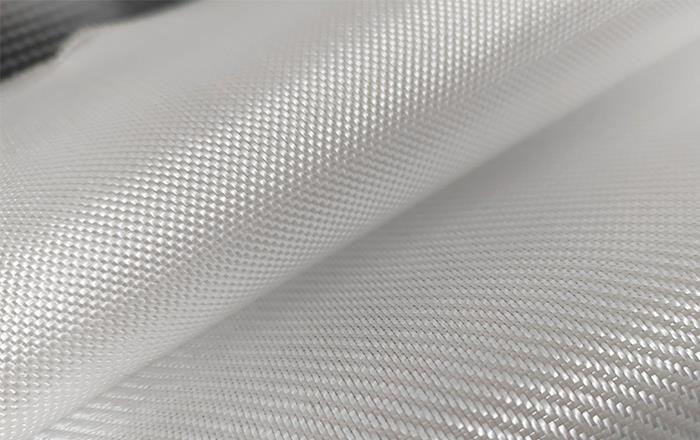

Quartz fiber fabric is a technical textile woven from continuous filaments composed primarily of high-purity fused silica (silicon dioxide, SiO₂). It is recognized for its inherent combination of thermal, electrical, and chemical properties derived from its fundamental silica composition.

Model Number
Thickness(mm)
Warp/Weft(count/cm)
g/m²
Structure
FZ-QFF-01
0.1
(16±2) * (16±2)
95
Plain/ Twill
FZ-QFF-02
0.11
(20±2) * (20±2)
108
Plain/ Twill
FZ-QFF-03
0.14
(14±2) * (14±2)
143
Plain/ Twill
FZ-QFF-04
0.2
(12±2) * (10±2)
200
Plain/ Twill
FZ-QFF-05
0.22
(16±2) * (14±2)
216
Plain/ Twill
FZ-QFF-06
0.28
(36±2) * (20±2)
295
Satin
